基本细节:

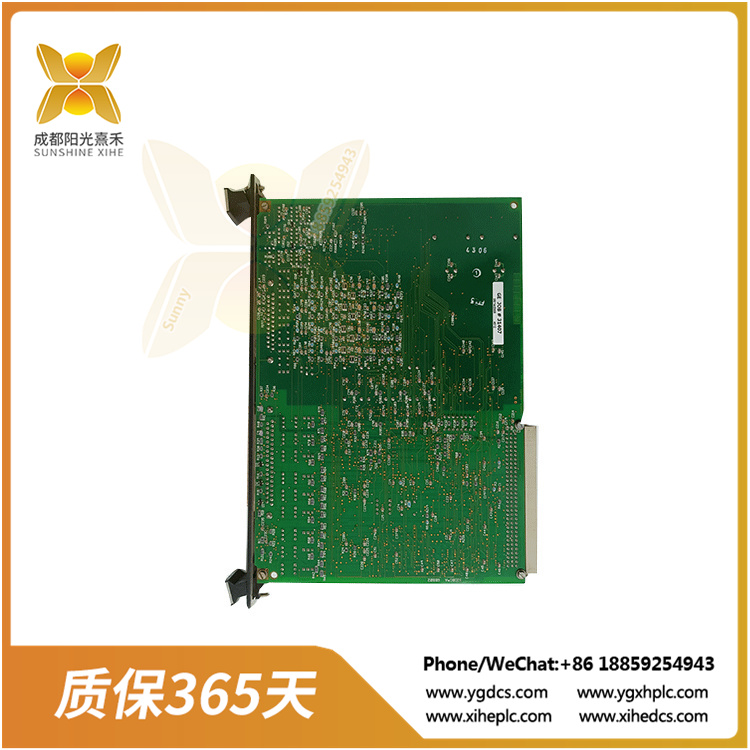

DS200CSSAG1A 状态传感器板 多重冗余
状态传感器板DS200CSSAG1A包含两个 40 针连接器，高 4 英寸，宽 11 英寸。它还包含一个 4 针连接器和一个 9 针连接器。 DS200CSSAG1A更换的GE电池状态传感器板可能是旧板的较新版本。您可能会注意到，组件位于电路板上的不同位置，并且在目视检查电路板后，这些组件也可能看起来不同。然而，尽管存在差异，但安装后，更换板将提供与旧板相同的功能，并确保新旧板之间的兼容性。
燃气轮机控制系统是GE用于蒸汽和燃气轮机控制的长系列高可靠性电液控制（EHC）系统的一个版本。Mark V 燃气轮机控制系统满足所有燃气轮机控制要求，同时通过高级保护和多重冗余提供相当高的可靠性。
一个六针公垂直针端子连接器位于电路板的中心线上，两个BNC母插头完成了ARCNET连接卡。这些插头旨在使LAN通信更容易。
@TXA (-)-发送和接收信号，通道 A
@TXA (+)-通道A发送和接收信号
@TXB(-)-发送和接收信号通道 B
@TXB(+)-发送和接收信号通道 B
@P5-电源+5VDC
@DCOM-通用电源 数字
DS200CSSAG1A
The status sensor board DS200CSSAG1A contains two 40-pin connectors and is 4 inches high and 11 inches wide. It also contains a 4-pin connector and a 9-pin connector. The DS200CSSAG1A replacement GE battery status sensor board may be a newer version of the old one. You may notice that the components are located in different locations on the board, and these components may also look different after visually inspecting the board. However, despite the differences, when installed, the replacement board will provide the same functionality as the old board and ensure compatibility between the old and new boards.
The Gas Turbine control system is a version of GE’s long line of highly reliable electro-hydraulic control (EHC) systems for steam and gas turbine control. The Mark V gas turbine control system meets all gas turbine control requirements while providing a high level of reliability with advanced protection and multiple redundancies.
A six-pin male vertical pin terminal connector is located on the centerline of the board, and two BNC female plugs complete the ARCNET connection card. These plugs are designed to make LAN communication easier.
@TXA (-)- Sends and receives signals, channel A
@TXA (+)- Channel A sends and receives signals
@TXB(-)- Sends and receives signal channel B
@TXB(+)- Transmit and receive signal channel B
@P5- Power +5VDC
@DCOM- Universal power number
如果您需要查询或购买，请将产品型号发送到我的电子邮件或直接致电我
销售经理:何经理
手机: + 86 18005021035
邮箱: 18005021035@163.com
与成都阳光熹禾合作我们提供一流的服务，实现更快的速度，交付多样化的零件!
1.在24小时内及时回复您
2.交货时间快
3.最好的服务，合理的价格
4.在生产线上工作多年，有良好的口碑
