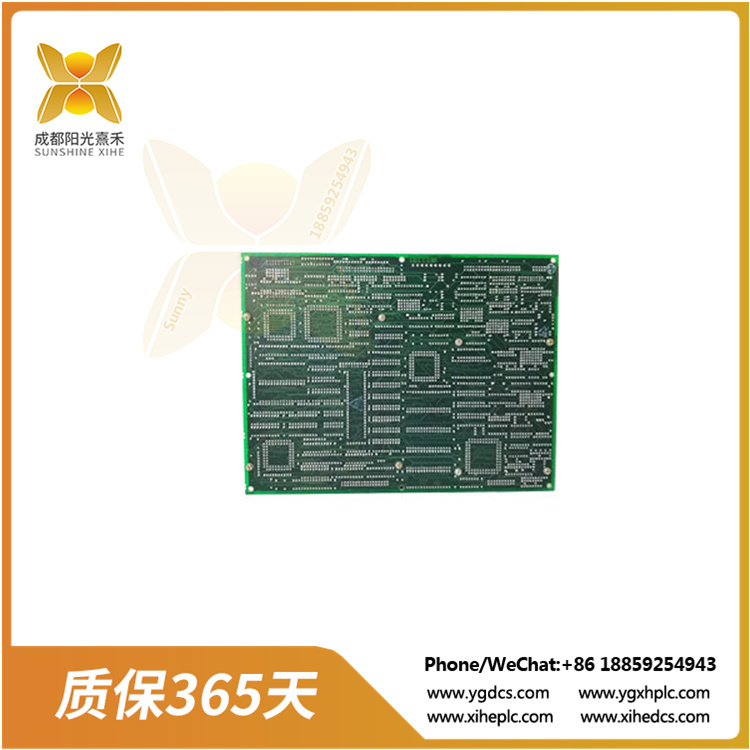

DS200CTBDG1A 控制板 集成保护/监测/控制系统

基本细节:

DS200CTBDG1A 控制板 集成保护/监测/控制系统

该DS200CTBDG1A是Mark V GE DS200控制板，用作涡轮机控制系统的一部分。Mark V 是通用电气后来发布的 Speedtronic 涡轮机控制管理系统之一。它是一种集成保护/监测/控制系统，专为蒸汽轮机或燃气轮机的机械和发电机应用而设计。MKV还可用于工厂控制的平衡。
该DS200CTBDG1A在Mark V系统中用作终端板。该板通常安装在系统的 C 内核中，在通用数据处理器中。该板通过 RS-232 9 针 d-shell 有线连接和 IONet 以太网引脚连接器，使用 IONet（以太网）上的通信链路与较大系统中的其他点和板进行通信。

DS200CTBDG1A是一个对静电敏感的组件。建议任何操作此板的人都使用防静电腕带，以防止静电积聚，从而可能导致组件损坏或可能的静电冲击。只有熟悉Mark V设备的训练有素的人员才能安装或维护此设备。有关正确处理、维护计划以及有关可能的电路板危险的详细信息，请参阅通用电气最初在购买 OEM 时提供的文档，例如手册或用户指南。
兼容性:GE DCS系统
工作温度:-40℃℃~ 70℃℃
输入电压:24V DC
输出电压:5V DC

DS200CTBDG1A

The DS200CTBDG1A is a Mark V GE DS200 control board used as part of the turbine control system. The Mark V was one of the Speedtronic turbine control management systems later released by General Electric. It is an integrated protection/monitoring/control system designed for mechanical and generator applications in steam turbines or gas turbines. MKV can also be used for balancing plant controls.
The DS200CTBDG1A is used as a terminal board in Mark V systems. The board is usually installed in the C core of the system, in a general-purpose data processor. The board communicates with other points and boards in the larger system using a communication link on IONet (Ethernet) via an RS-232 9-pin d-shell wired connection and IONet Ethernet pin connector.

The DS200CTBDG1A is an electrostatic sensitive component. It is recommended that anyone operating this board use an ESD wrist strap to prevent the buildup of static electricity, which may result in component damage or possible electrostatic shock. Only trained personnel familiar with Mark V equipment can install or maintain this equipment. For proper handling, maintenance plans, and detailed information about possible board hazards, refer to the documentation that GE originally provided when purchasing the OEM, such as a manual or user guide.
Compatibility :GE DCS system
Operating temperature :-40℃ ~ 70℃℃
Input voltage :24V DC
Output voltage :5V DC
