DS200TCDAG1BCB 数字 I/O 电路板 连接器位于顶部和底部边缘

基本细节:

DS200TCDAG1BCB 数字 I/O 电路板 连接器位于顶部和底部边缘

被称为 DS200TCDAG1BCB 的 Mark V Speedtronic 板用作数字 I/O 电路板。 Mark V是通用电气在Speedtronic旗下创建的几个涡轮机控制系统之一。这些系统旨在为工业燃气轮机和蒸汽轮机系统提供可靠的管理和控制。
该DS200TCDAG1BCB用作 Mark V 系统中的继电器输出和触点输入的接口。使用软件配置来设置这些工作方式。
DS200TCDAG1BCB在 Mark V 的 <r1> 核心内工作。 它旨在与 STCA、UCPB、TCQA、TCQE 和 TCEA 板等板连接并协同工作。如果您还需要这些组件中的任何一个，请在我们的库存中搜索这些选项。

DS200TCDAG1BCB板具有多个跳线，可用于硬件配置。这包括用于启用或禁用 RS-232C 端口的 J1 跳线、用于禁用 IONET 电阻的 J2 和 J3 跳线，以及用于其他值的 J4 到 J8 跳线。

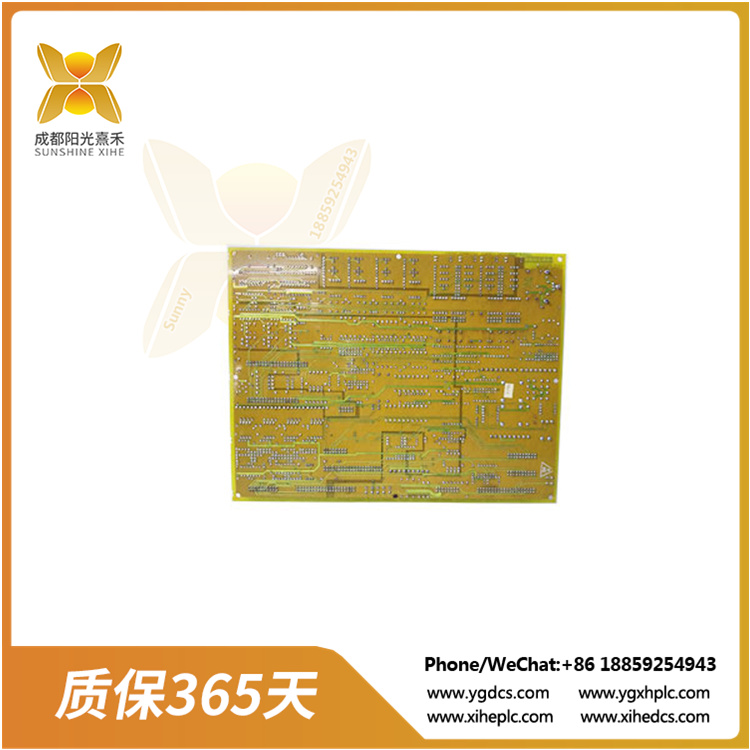

其他电路板组件包括测试点、垂直引脚连接器、集成电路、引脚连接器、电阻器网络阵列、电容器和继电器。连接器位于顶部和底部边缘。该板沿长边和短边标记，以便对齐，并包括 GE 标志以确保真实性
状态传感器板DS200CSSAG1BCB包含两个 40 针连接器，高 4 英寸，宽 11 英寸。它还包含一个 4 针连接器和一个 9 针连接器。GE Cell State Sensor Board DS200CSSAG1BCB 是安装在驱动器中的电路板的标准尺寸。电路板机架设计有机架空间，可容纳带有与电路板对齐的螺钉孔的电路板。从驱动器上卸下电路板时，请使用螺丝刀卸下将电路板固定到位的螺钉和垫圈。不要让任何硬件掉入驱动器。移除电路板时，最好用两只手。用一只手转动螺丝刀，另一只手握住螺丝、垫圈和其他硬件。将硬件放在一起，安装新板时可能需要使用它。

如果某些硬件落入驱动器中，请停止更换过程并搜索硬件。如果将金属部件留在驱动器中，则存在电气危险，可能会损坏组件或引起火灾。还要寻找卡在运动部件中的硬件。如果运动部件被卡住，可能会损坏部件。在重新启动驱动器之前，请通知该过程区域中的其他人。最佳做法是在重新启动驱动器之前清理该区域，以免受伤。

DS200TCDAG1BCB

The Mark V Speedtronic board, known as the DS200TCDAG1BCB, is used as a digital I/O board. The Mark V is one of several turbine control systems created by General Electric under Speedtronic. These systems are designed to provide reliable management and control of industrial gas turbine and steam turbine systems.
The DS200TCDAG1BCB is used as an interface for relay output and contact input in the Mark V system. Use software configuration to set up these ways of working.
The DS200TCDAG1BCB works within Mark V’s <r1> core. It is designed to connect and work with boards such as STCA, UCPB, TCQA, TCQE and TCEA boards. If you still need any of these components, please search our inventory for these options.

The DS200TCDAG1BCB board has multiple jumpers and can be used for hardware configuration. This includes J1 jumpers for enabling or disabling RS-232C ports, J2 and J3 jumpers for disabling IONET resistors, and J4 to J8 jumpers for other values.
Other board components include test points, vertical pin connectors, integrated circuits, pin connectors, resistor network arrays, capacitors, and relays. Connectors are located on the top and bottom edges. The board is marked along the long and short sides for alignment and includes a GE logo to ensure authenticity
The status sensor board DS200CSSAG1BCB contains two 40-pin connectors and is 4 inches high and 11 inches wide. It also contains a 4-pin connector and a 9-pin connector. GE Cell State Sensor Board DS200CSSAG1BCB is the standard size of the circuit board installed in the driver. The board rack is designed with rack space to accommodate boards with screw holes aligned with the board. When removing the circuit board from the driver, use a screwdriver to remove the screws and washers holding the circuit board in place. Do not let any hardware fall into the drive. When removing a circuit board, it’s best to use two hands. Turn the screwdriver with one hand and hold the screws, washers, and other hardware with the other. Put your hardware together and you may need to use it when installing a new board.

If some hardware falls into the drive, stop the replacement process and search for the hardware. If metal parts are left in the drive, there is an electrical hazard that could damage the components or cause a fire. Also look for hardware stuck in moving parts. If moving parts get stuck, they may be damaged. Inform others in the process area before restarting the drive. The best practice is to clean the area before restarting the drive to avoid injury.
