SCXI-1180 引脚电缆扩展器件 馈通面板定制电路模块

基本细节:SCXI-1180 引脚电缆扩展器件 馈通面板定制电路模块

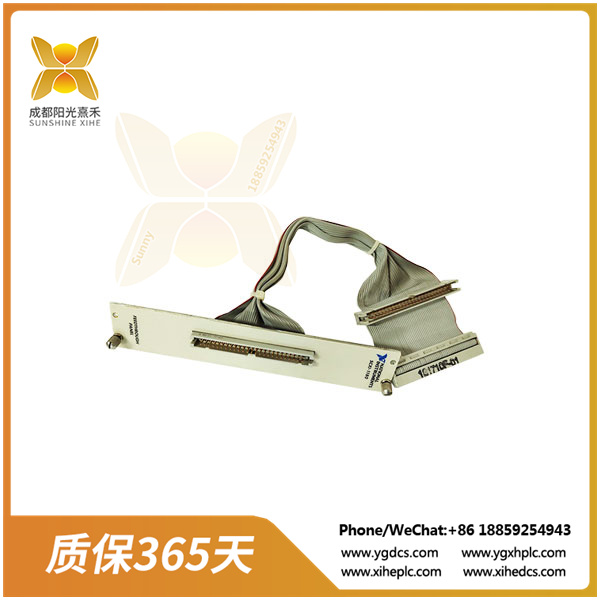

馈通面板定制电路模块- SCXI – SCXI – 1180馈通面板是一个50引脚电缆扩展器件，需要与其他SCXI产品一起使用。SCXI‑1180包含一个前面板和一个50针带状电缆组件，用于将无条件信号集成到一个坚固、紧凑的SCXI底盘系统中。
NI SCXI-1180(部件号:776572-80)有一个前面板和一个50针带状电缆组件，用于将无条件信号整合到一个小型，耐用的SCXI底盘系统中。该模块可与SCXI-1302端子块一起用于信号断开。SCXI-1180可以与PC, AT和MC数据采集板和SCXI模块一起操作，并带有NI-DAQ软件(DOS/Windows/LabWindows)。这种定制电路模块也可以与NB系列数据采集板和SCXI模块一起使用，并带有用于Macintosh的LabVIEW或NI-DAQ软件。
SCXI 1180模块专为NI SCXI产品而设计。该模块将信号线扩展到不需要从SCXI机箱的后面到前面调节的信号。NI SCXI-1180仅占用SCXI系统的一个插槽，并轻松连接到用户的SCXI电缆附件。此外，该定制电路模块可用于将单个DAQ仪器的I/O信号引导到用户SCXI系统的前端，以方便使用。该模块也可以用作雏菊链扩展器与SCXI-1340, SCXI-1341，或SCXI-1342电缆组件。通过这些组合，用户可以访问模块和插件板之间的电缆上的信号，特别是模块不使用的信号。SCXI-1340、SCXI-1341、SCXI-1342、SCXI-1344或SCXI-1351的公出线连接可以连接到相邻槽位的后连接器上。这方面的一个例子是，当板的模拟输入线连接到模块时，用户可以访问MIO板的数字I/O线的模拟输出。

SCXI-1180

Feedthrough Panel Custom Circuit Module – SCXI-SCXI-1180 Feedthrough Panel is a 50-pin cable expansion device that needs to be used with other SCXI products. The SCXI‑1180 consists of a front panel and a 50-pin ribbon cable assembly for integrating unconditional signals into a rugged, compact SCXI chassis system.
The NI SCXI-1180(Part number :776572-80) has a front panel and a 50-pin ribbon cable assembly for integrating unconditional signals into a small, durable SCXI chassis system. The module can be used with the SCXI-1302 terminal block for signal disconnection. The SCXI-1180 can be operated with PC, AT and MC data acquisition boards and SCXI modules, and comes with NI-DAQ software (DOS/Windows/LabWindows). This custom circuit module can also be used with the NB Series data acquisition board and SCXI module, and comes with LabVIEW or NI-DAQ software for Macintosh.
The SCXI 1180 module is designed specifically for NI SCXI products. The module extends signal lines to signals that do not need to be adjusted from the back to the front of the SCXI chassis. The NI SCXI-1180 occupies only one slot in the SCXI system and easily connects to the user’s SCXI cable attachment. In addition, the custom circuit module can be used to direct I/O signals from a single DAQ instrument to the front end of a user’s SCXI system for ease of use. The module can also be used as a Daisy chain expander with a SCXI-1340, SCXI-1341, or SCXI-1342 cable assembly. Through these combinations, the user can access the signals on the cable between the module and the plug-in board, especially the signals not used by the module. The public outlet connections of the SCXI-1340, SCXI-1341, SCXI-1342, SCXI-1344, or SCXI-1351 can be connected to the rear connectors in adjacent slots. An example of this is when the analog input line of the board is connected to the module, and the user can access the analog output of the digital I/O line of the MIO board.
