BG65X50SI 无刷直流电机 具有集成的四象限操作速度控制电子

基本细节:BG65X50SI 无刷直流电机 具有集成的四象限操作速度控制电子

BG 65x50si电机类型代表ec电机(无刷直流电机)，具有集成的四象限操作速度控制电子。所需的速度是通过模拟信号输入0…+ 10 V。“顺时针旋转”、“逆时针旋转”、“关”(带飞轮的快速断点)和“停”(带保持力矩的快速断点)四种工作模式通过两个数字输入IN1和IN2控制。可选，另外两个数字输入的附加功能可用。因此，除其他事项外，还可以记住2个固定的电机速度(例如快速移动和爬行速度)，加速坡道和制动坡道(Teach)。另外还有两个数字输出信号:一个每转15个脉冲(例如用于位置和速度控制)，另一个显示“故障”。如果有更大的需求，可根据要求提供带有特殊固件的客户特定解决方案。
除滚珠轴承外，电机无易损件，因此非常适合连续运行。电机BG 65 SI可以与行星或蜗杆齿轮与众多微调齿轮比相结合。

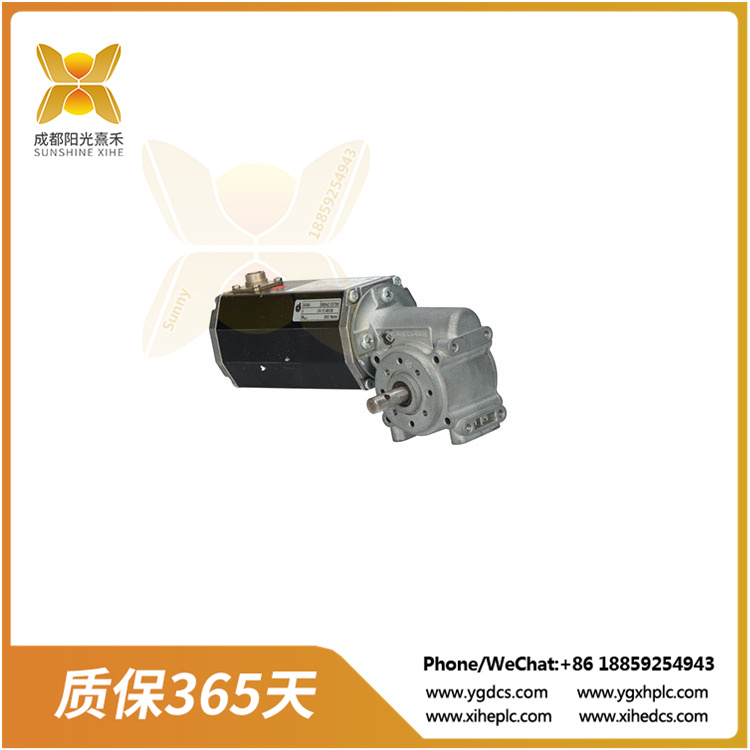

BG65X50SI

The BG 65x50si motor type stands for ec motor (brushless DC motor) with integrated four-quadrant operation speed control electronics. The required speed is via analog signal input 0… Plus 10 V. The four operating modes of “clockwise rotation”, “counterclockwise rotation”, “off” (fast breakpoint with flywheel) and “stop” (fast breakpoint with holding moment) are controlled by two digital inputs IN1 and IN2. Optionally, two additional numeric inputs are available. Thus, among other things, it is possible to remember 2 fixed motor speeds (such as fast moving and crawling speeds), acceleration ramps and brake ramps (Teach). There are also two digital output signals: one for 15 pulses per revolution (for position and speed control, for example), and the other for “fault”. If there is a greater need, customer-specific solutions with special firmware are available on request.
With the exception of ball bearings, the motor has no wearing parts, making it ideal for continuous operation. The motor BG 65 SI can be combined with planetary or worm gears with numerous fine-tuning gear ratios.

如果您需要查询或购买，请将产品型号发送到我的电子邮件或直接致电我

销售经理:何经理

手机: + 86 18005021035

邮箱: 18005021035@163.com

与成都阳光熹禾合作我们提供一流的服务，实现更快的速度，交付多样化的零件!

1.在24小时内及时回复您

2.交货时间快

3.最好的服务，合理的价格

4.在生产线上工作多年，有良好的口碑

▲更多相关型号:BG65X50SI 无刷直流电机 具有集成的四象限操作速度控制电子
