基本细节:IC698CRE030 以太网端口 需要屏蔽电缆进行连接

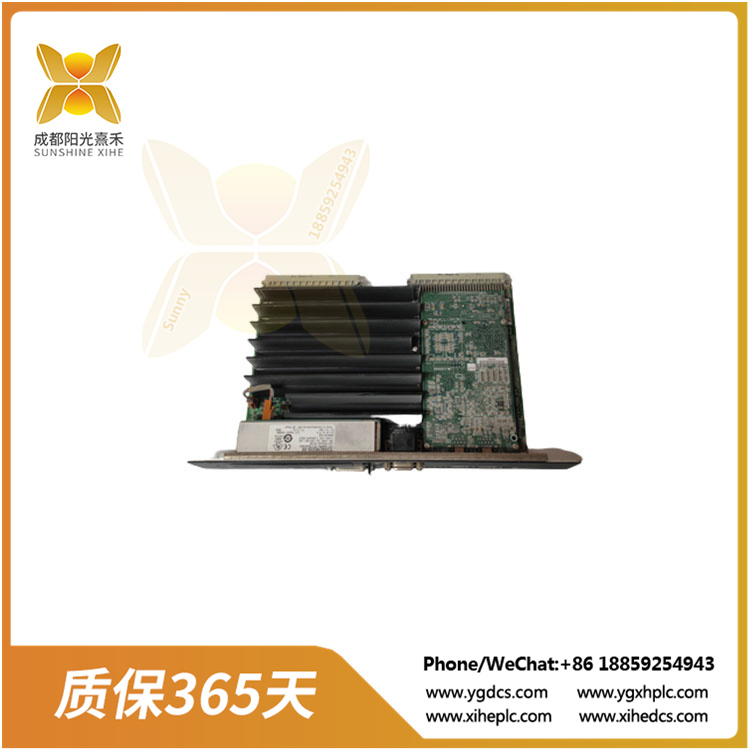

IC698CRE030 CPU 是额定频率为 600 兆赫兹的奔腾-M 冗余 CPU。它由 GE Fanuc 在 GE RX7i PACSystem 系列可编程逻辑控制器组件中制造。IC698CRE030 CPU 可以安装在 RX7i PLC 的 VME64 背板中。此设备具有一个内置以太网端口，其额定通信速度为 10 或 100 mb，并且由两个端口组成，这两个端口都是 RJ-45 端口。该以太网端口具有自动感应开关，可用于在线监控以及上传和下载数据。IC698CRE030 CPU 上的以太网接口允许用户从 Web 浏览器监控 PLC，并且不需要集线器或机架交换机即可正常运行。IC698CRE030冗余 CPU 具有 64 MB 的用户内存。
除了双RJ-45以太网端口外，GE Fanuc IC698CRE100030 Pentium-M冗余CPU还具有另一个以太网端口，即用于站点管理的RS-232串行端口和2个用于RS-232通信和RS-485通信的串行端口。所有这 3 个串行端口都是隔离的。RS-232 通信端口有一个指示端动状态的 LED 指示灯，其连接器类型是 9 针母头 D-sub 连接器。此端口也称为 DCE 或数据通信设备端口，只需要直通电缆即可进行连接。IC698CRE030 CPU 上的 RS-485 通信端口也是 DCE 端口，但它需要屏蔽电缆进行连接。站管理器端口使用直通电缆进行 RS-232 连接，就像普通 RS-232 电缆一样。
IC698CRE030
The IC698CRE030 CPU is a Pentium-M redundant CPU rated at 600 MHZ. It is manufactured by GE Fanuc in the GE RX7i PACSystem family of programmable logic controller components. The IC698CRE030 CPU can be installed in the VME64 backplane of the RX7i PLC. This device has a built-in Ethernet port with a rated communication speed of 10 or 100 mb and consists of two ports, both of which are RJ-45 ports. The Ethernet port has an automatic sensing switch that can be used for online monitoring as well as uploading and downloading data. The Ethernet interface on the IC698CRE030 CPU allows users to monitor the PLC from a Web browser and does not require a hub or rack switch to function properly. IC698CRE030 Redundant CPU with 64 MB of user memory.
In addition to the dual RJ-45 Ethernet ports, the GE Fanuc IC698CRE030 Pentium-M redundant CPU has another Ethernet port, namely the RS-232 serial port for site management and two serial ports for RS-232 communication and RS-485 communication. All three serial ports are isolated. The RS-232 communication port has an LED indicator indicating the actuated status, and its connector type is a 9-pin female D-sub connector. This port is also called a DCE or data communication device port and only requires a straight-through cable to connect. The RS-485 communication port on the IC698CRE030 CPU is also a DCE port, but it requires a shielded cable for connection. The station manager port uses a pass-through cable for RS-232 connections, just like a regular RS-232 cable.
如果您需要查询或购买，请将产品型号发送到我的电子邮件或直接致电我
销售经理:何经理
手机: + 86 18005021035
邮箱: 18005021035@163.com
与成都阳光熹禾合作我们提供一流的服务，实现更快的速度，交付多样化的零件!
1.在24小时内及时回复您
2.交货时间快
3.最好的服务，合理的价格
4.在生产线上工作多年，有良好的口碑
▲更多相关型号: IC698CRE030 以太网端口 需要屏蔽电缆进行连接
