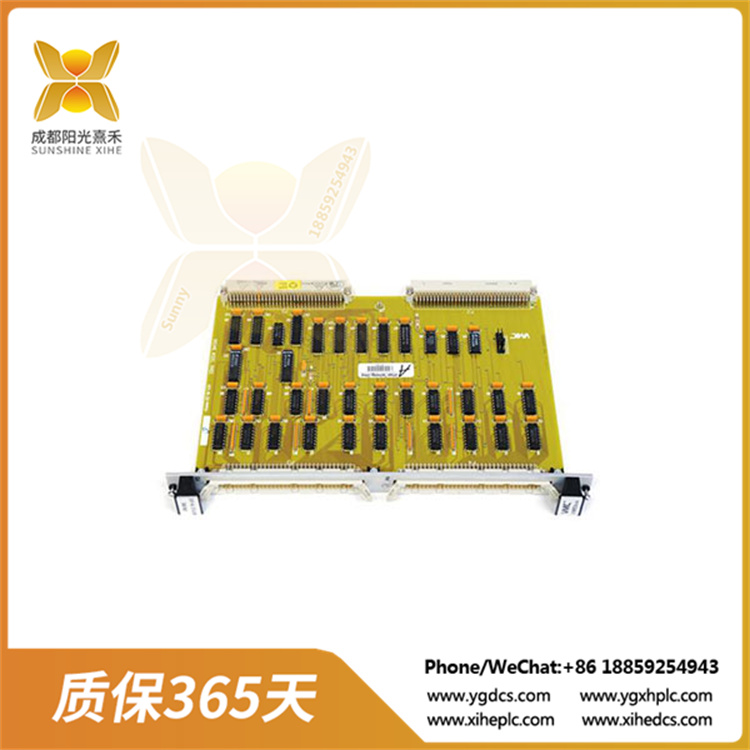

基本细节:VMIVME-M-485 单宽VMEbus模块 用于长线直放站的主直放站模块
VMIVME-M-485型
此型号在此列出了 VMIVME-M-485，一个重复 L-485 长线中继器链路模块。该装置具有一系列独特的功能，例如单个宽VME总线连接端口，用于该装置长线中继器的主中继器模块，以及一组DIN型输入和输出连接器。
VMIVME-M-485 模块被设计为 VMIC 长线中继器链路子系列产品中的两个单元之一。这些型号由两块板组成：其中一块是 VMIVME-Repeat-S-485 型号，另一块是这块板。这些板串联在一起，由于与主VMEbus机箱和从VMEbus机箱相关联，因此被称为此类板。
VMIVME-M-485 单元还设计用于容纳双 Eurocard 外形模块，并且能够支持 16 位和 24 位寻址，以及 8 位和 16 位数据传输。
它完全能够支持所有七个可用的中断级别。连接了 5 英尺长的电缆，传播延迟约为 400 纳秒。对于连接的较长电缆，每英尺有额外的 4 纳秒。
设备在运行时的环境温度范围在 0 到 55 摄氏度之间，在存储中断电时在 -20 到 85 摄氏度之间。
VMIVME-Repeat L-485 长线中继器链路模块是 VMIC 长线中继器链路中的两种板型之一。VMIC长线中继器链路由两板组成。一块板被指定为 VMIVME-Repeat M-485，而另一块板被指定为 VMIVME-Repeat S-485。这两个板之所以被称为主板，是因为它们与主从VMEbus机箱相关联。
VMIVME-Repeat M-485 板在主 VMEbus 机箱中显示为 VMEbus 从板。VMIVME-Repeat M-485 的地址空间是驻留在 VMEbus 从机箱中的每个从站板的组合地址空间。
特征：
单宽VMEbus模块
用于长线直放站的主直放站模块
DIN 型 I/O 连接器
双 Eurocard 外形尺寸
支持 16 位和 24 位寻址
支持 8 位和 16 位数据传输
M-485/32 配置：
• 支持 8、16 和 32 位数据传输
VMIVME-M-485
VMIVME-M-485
This model is listed here as VMIVME-M-485, a repeat L-485 long line repeater link module. The unit has a range of unique features, such as a single wide VME bus connection port, a main repeater module for the unit’s long-line repeater, and a set of DIN type input and output connectors.
The VMIVME-M-485 module is designed as one of two units in the VMIC long Line Repeater Link subfamily. These models consist of two boards: one is the VMIVME-Repeat-S-485 model, and the other is this board. These boards are connected in series and are called such boards because they are associated with the main VMEbus chassis and the slave VMEbus chassis.
The VMIVME-M-485 unit is also designed to accommodate dual Eurocard form factor modules and is capable of supporting 16-bit and 24-bit addressing, as well as 8-bit and 16-bit data transmission.
It fully supports all seven available interrupt levels. A 5-foot-long cable was connected, and the propagation delay was about 400 nanoseconds. For longer cables connected, there is an additional 4 nanoseconds per foot.
The ambient temperature range of the device is between 0 and 55 degrees Celsius during operation, and between -20 and 85 degrees Celsius when the storage is interrupted.
The VMIVME-Repeat L-485 Long Line repeater link module is one of the two board types in the VMIC long line repeater link. The VMIC long line repeater link consists of two boards. One board is specified as VMIVME-Repeat M-485 and the other board is specified as VMIVME-Repeat S-485. These two boards are called motherboards because they are associated with the master-slave VMEbus chassis.
The VMIVME-Repeat M-485 board is displayed as a VMEbus slave board in the master VMEbus chassis. The address space of VMIVME-Repeat M-485 is the combined address space of each slave board residing in the VMEbus slave chassis.
Features:
Single-width VMEbus module
Main repeater module for long line repeater
DIN type I/O connector
Double Eurocard form factor
Supports 16-bit and 24-bit addressing
Supports 8-bit and 16-bit data transmission
M-485/32 Configuration:
• Supports 8, 16 and 32 bit data transmission
