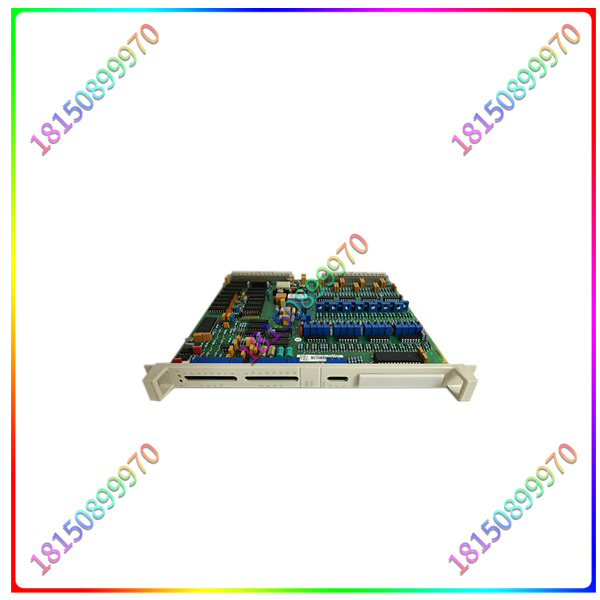

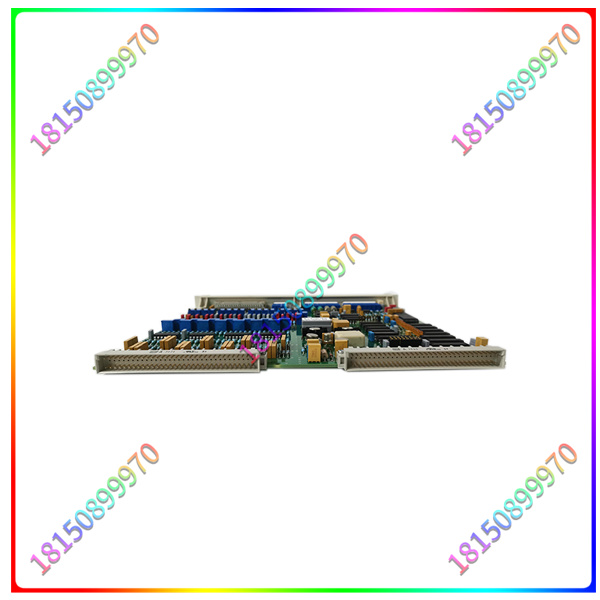

DSAI130D ABB 模拟输入板

产品编号：3BSE003127R1

ABB 型号名称：DSAI130D

目录说明：DSAI130D 模拟输入板 16 CH.12

详细描述：DSAI130D 模拟输入板

16 路输入，带 4 组滤波时间，12 位，差分输入

+/-10V，+/-10MA，0.03%

CONV.TIME 20 MS

CUT OFF FREQ。10HZ,30HZ

100HZ,300HZ

关税税号：85389091

产品净重：0.475公斤

模拟量输入模块DSAI130D 3BSE003127R1 是一种将模拟量远距离采集到计算机上的装置。该系统采用RS-485总线作为数据通信线路，提供模拟量转换485功能，可同时将模拟量输入模块，并通过RS-485总线传送给计算机。
以RS-485接口为通信接口，可将多个模块合并，实现多路模拟信号的传输，并可分散配置于485线路上，通过地址码识别，可直接与MODBUSRTU协议的组态软件连接。

模拟量输入模块DSAI130D 3BSE003127R1 主要负责采集模拟信号。压力传感器采集到的模拟信号被采集到，然后将其采集到的模拟信号进行处理。传感器数据包括模拟电压、电流、热阻、热电偶、温度等，再通过总线传输到计算机的智能模块。

DSAI130D

推出了CMS-700，允许通过内置的网络服务器进行数据收集、分析和下载，以管理电源并优化电路监控系统的能效分析。该系统扩展了一代开放式核心传感器，无需断开电源即可连接到现有装置，提供一定程度的测量精度。

产品特点是开芯式传感器，可连接到现有装置。
CMS-700能源监控单元的加入扩展了ABB电路监控系统解决方案的产品组合，用于建筑物和关键电力应用中的分支监控的多通道测量。
CMS-700单元具有开放式核心传感器，可连接到现有装置，以实现改造和扩展的灵活性。
所有组件通过一根扁平电缆连接，安装不需要特殊工具
CMS-700能源监测和控制单元可集成多达96个传感器，可使用内置网络服务器、传输控制协议/互联网协议(TCP/IP)或Modbus远程终端单元(RTU)显示和处理这些传感器。CMS-700技术还可以监控高达160安培的交流、DC或混合电流。CMS-700能量监测和控制单元的尺寸使其占用最小的空间，并且不需要外壳中的额外空间。

DSAI130D

Product Number: 3BSE003127R1

ABB model name: DSAI130D

Directory Description: DSAI130D analog input board 16 CH.12

Detailed description: DSAI130D analog input board

16 input, with 4 groups of filtering time, 12 bit, differential input

+/-10V, +/-10MA, 0.03%

CONV.TIME 20 MS

CUT OFF FREQ. 10HZ,30HZ

100HZ,300HZ

Customs number: 85389091

Net weight: 0.475 kg

The analog input module DSAI130D 3BSE003127R1 is a device for remote acquisition of analog data to a computer. The system uses RS-485 bus as the data communication line, provides the analog conversion 485 function, can simultaneously input the analog module, and transmitted to the computer through the RS-485 bus.
With RS-485 interface as the communication interface, multiple modules can be combined to achieve the transmission of multiple analog signals, and can be dispersed on the 485 line, through the address code identification, can be directly connected with the MODBUSRTU protocol configuration software.

Analog input module DSAI130D 3BSE003127R1 is mainly responsible for collecting analog signals. The analog signal collected by the pressure sensor is collected, and then the analog signal collected by the pressure sensor is processed. The sensor data includes analog voltage, current, thermal resistance, thermocouple, temperature, etc., and then transmitted to the intelligent module of the computer through the bus.
Launched the CMS-700, which allows data collection, analysis and download via a built-in web server to manage power and optimize energy efficiency analysis for circuit monitoring systems. The system extends a generation of open core sensors that can be connected to existing units without disconnecting the power supply, providing a degree of measurement accuracy.

The product features an open-core sensor that can be connected to existing devices.
The addition of the CMS-700 Energy Monitoring unit expands ABB’s portfolio of circuit monitoring system solutions for multi-channel measurement of branch monitoring in buildings and critical power applications.
The CMS-700 unit features an open core sensor that can be connected to existing units for flexibility to retrofit and expand.
All components are connected via a flat cable and no special tools are required for installation
The CMS-700 Energy Monitoring and Control unit integrates up to 96 sensors that can be displayed and processed using a built-in network server, Transmission Control Protocol/Internet Protocol (TCP/IP) or Modbus Remote Terminal Unit (RTU). The CMS-700 technology can also monitor AC, DC, or hybrid currents up to 160 amps. The size of the CMS-700 Energy monitoring and control unit allows it to take up minimal space and does not require additional space in the housing.

DSAI130D
